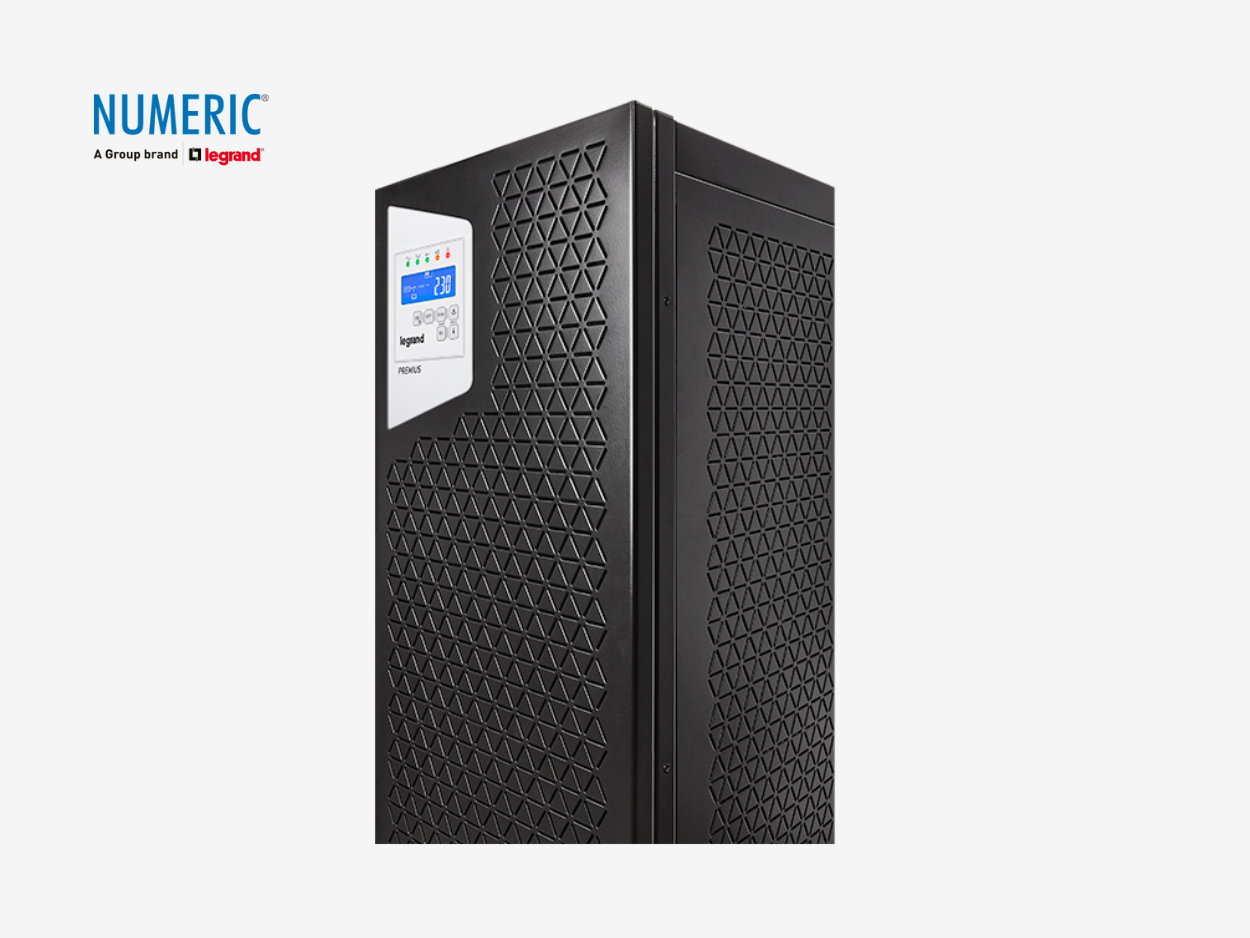

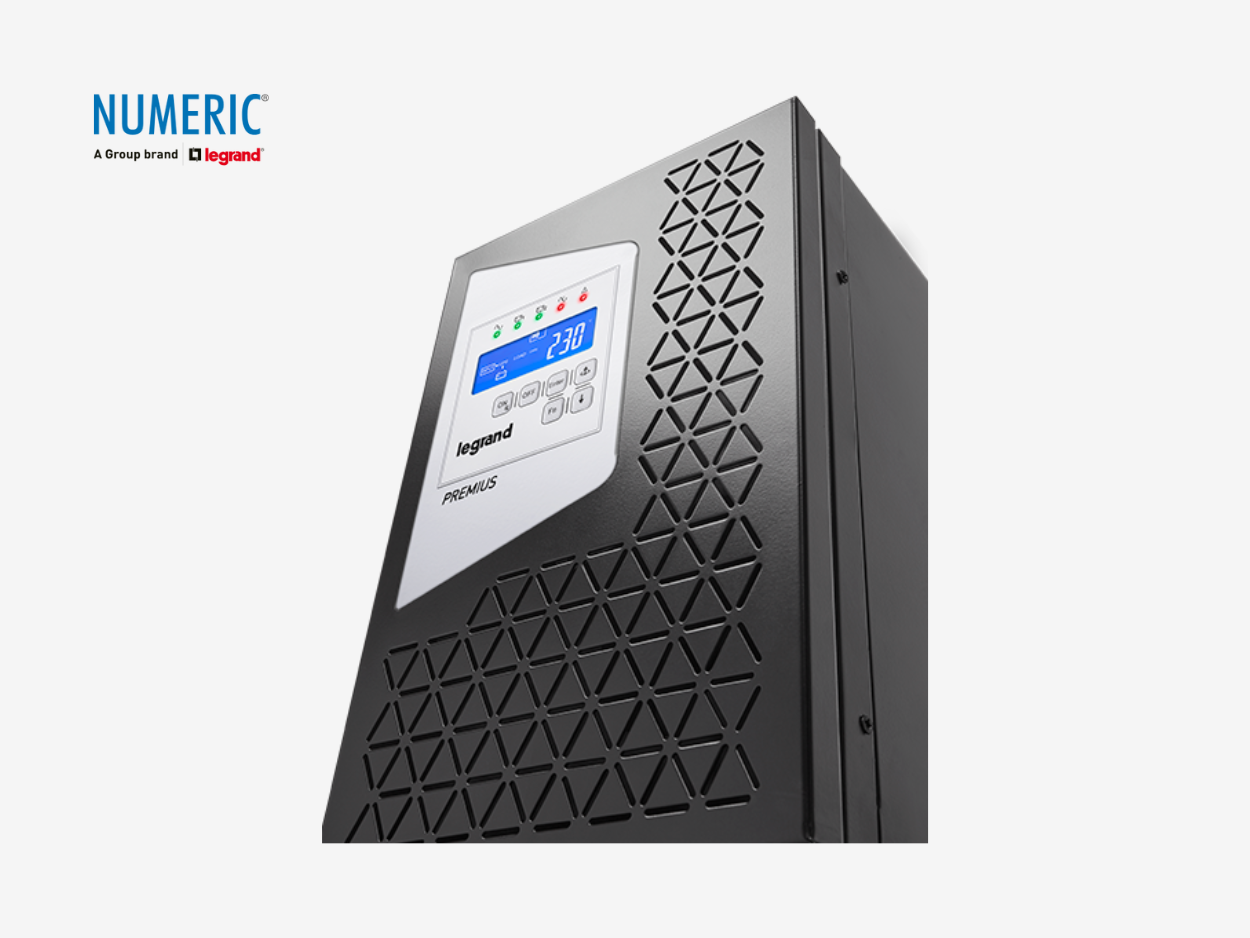

The Premius 10 kVA is a high-density, single-phase online double-conversion UPS designed to provide reliable and efficient power protection for critical applications across industries such as residential, SOHO, data centers, healthcare, manufacturing, infrastructure, and commercial sectors. With up to 96% efficiency and unity power factor, it minimizes energy costs while ensuring consistent performance. Its versatile configuration supports both single-phase and three-phase inputs with single-phase output for maximum adaptability. The rack and tower form factor, parallel scalability up to 4 units, and microprocessor-controlled fans make it a powerful and space-saving solution.

Key Features:

• Capacity: 10 kVA / 10 kW
• Efficiency: Up to 94% (Online), 98% (Green Mode)
• Input Voltage: 230 V (L-N) / 400 V (L-L)
• Input Voltage Range: 176 V – 280 V (L-N), 305 V – 485 V (L-L)
• Output Voltage: 230 V, adjustable to 220/230/240 V (±1%)
• Output Power Factor: Unity
• THD: <1% (Linear Load), <3% (Non-Linear Load)
• Overload Capability: Up to 155% for 1 minute
• Battery Compatibility: VRLA, Tubular (16-40 Batteries)
• Communication Ports: RS485, USB, Optional SNMP & Modbus-TCP/IP
• Protection: Static Bypass, Overload, Short Circuit, Surge Protection
• Operating Temperature: 0 – 40°C (Recommended: 20-25°C for optimal battery life)
• Noise Level: <55 dBA at 1m

Certifications:

• Compliance: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3
