A 3 Phase Online UPS is not something you should purchase simply by comparing prices or choosing the highest kVA rating available. For businesses operating data centers, manufacturing facilities, IT infrastructure, communication systems, or other critical equipment, the UPS becomes an important part of the overall electrical infrastructure.
The wrong UPS can create problems such as inadequate backup time, insufficient capacity, poor compatibility with the electrical system, excessive operating costs, limited expansion capability, and difficult maintenance.
Before investing in a 3 Phase Online UPS, it is therefore important to understand the electrical load, backup requirements, battery configuration, efficiency, power quality, redundancy, installation conditions, and long-term operating requirements.
Bansal Hi-Tech offers 3 Phase Online UPS solutions for applications that require reliable three-phase power protection. But before selecting any particular system, there are several technical factors you should check.

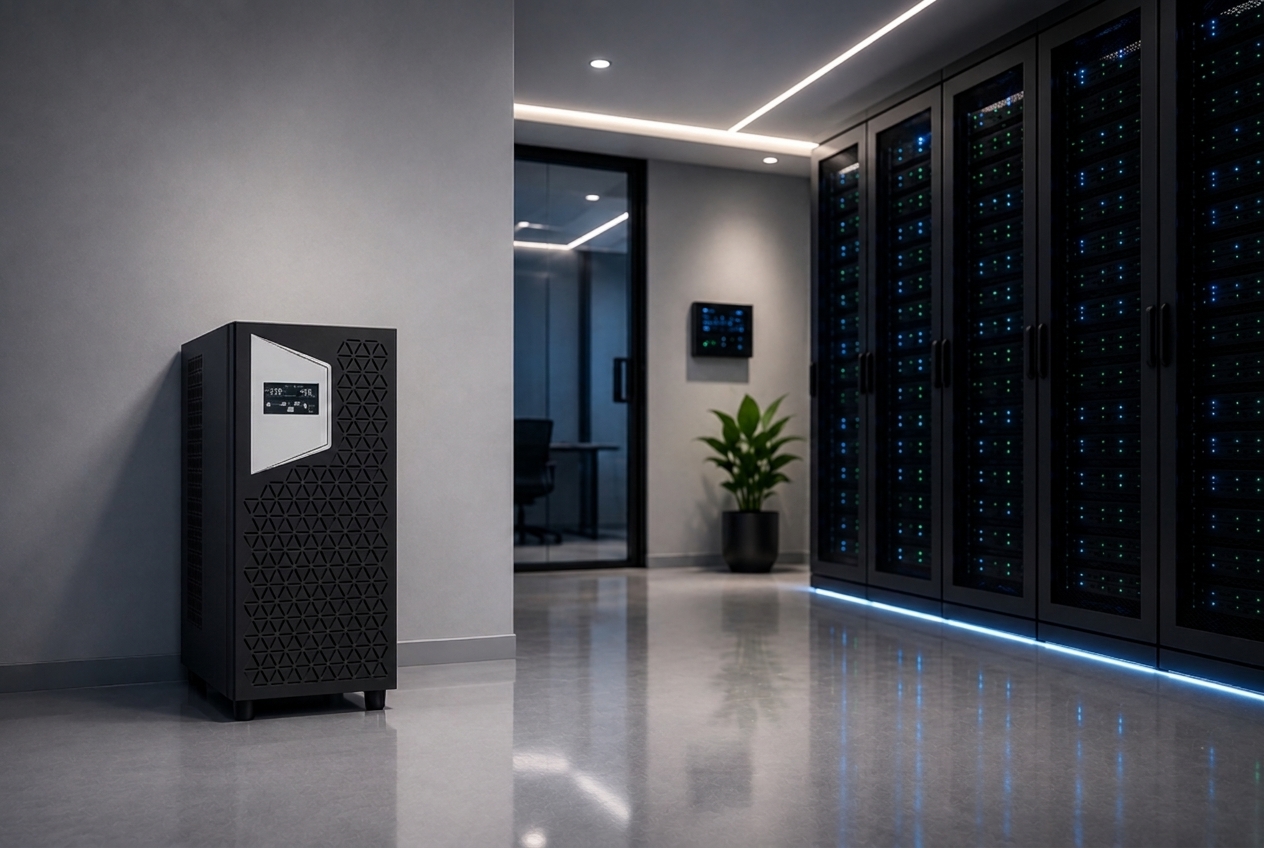

What Is a 3 Phase Online UPS?
A 3 Phase Online UPS is an uninterruptible power supply designed to protect equipment connected to a three-phase electrical system.
The UPS continuously manages the incoming electrical supply and provides controlled power to connected critical loads. When the normal utility supply becomes unavailable or falls outside acceptable operating conditions, the battery system supplies stored energy to maintain the required output for the specified period.
Three-phase UPS systems are generally considered for larger installations where power continuity, electrical stability, and centralized power protection are important.
Typical applications include:
- Data centers
- Manufacturing facilities
- IT infrastructure
- Telecommunications
- Healthcare facilities
- Banking and financial infrastructure
- Commercial buildings
- Industrial automation
- Enterprise server environments
The appropriate UPS depends on the electrical characteristics and requirements of the specific installation.
Why You Should Not Buy a 3 Phase Online UPS by kVA Alone
One of the most common mistakes buyers make is comparing UPS systems solely by their kVA rating.
For example, two UPS systems may both be rated at 100 kVA but may differ in:
- Maximum kW output
- Power factor
- Efficiency
- Battery configuration
- Overload capability
- Input characteristics
- Harmonic performance
- Bypass arrangement
- Monitoring capabilities
- Redundancy options
Therefore, kVA is only one part of UPS selection.
You need to understand how much real power your equipment consumes and how that requirement relates to the UPS’s rated apparent power.
The basic relationship is:
kW = kVA × Power Factor
If a UPS is rated at 100 kVA with a power factor of 0.9, its corresponding real-power capacity is approximately 90 kW.
However, always use the manufacturer’s published kVA and kW ratings when making the final selection.
1. Check Your Actual Electrical Load
Before selecting a UPS, determine the actual load that needs protection.
Create an inventory of the equipment that will be connected to the UPS and record its electrical requirements.
Consider:
- Server loads
- Networking equipment
- Storage systems
- Industrial control systems
- Automation equipment
- Security systems
- Communication equipment
- Critical lighting
- Other essential electrical loads
Do not simply add the nameplate ratings and assume that the result represents actual operating demand.
Where possible, use measured electrical consumption data.
You should identify:
Connected Load
The total electrical demand of all equipment intended to be connected.
Maximum Operating Load
The highest expected load during normal operation.
Critical Load
The equipment that genuinely requires UPS protection.
Future Load
Additional equipment that may be installed later.
This information provides a much more reliable foundation for UPS sizing.
2. Check Both kVA and kW Ratings
After determining your load, compare it with both the UPS’s kVA and kW ratings.
A UPS should have sufficient capacity to handle the real power required by the connected equipment while maintaining appropriate operating headroom.
For example, if your critical equipment requires 180 kW, selecting a UPS based only on a 200 kVA label could be inappropriate if its actual maximum kW output does not provide sufficient capacity.
This is why professional UPS selection should always consider:
Load kW + Load Power Factor + UPS kVA + UPS kW Capacity
rather than looking at a single number.
3. Determine the Required Battery Backup Time
The next question is not simply whether the UPS provides battery backup, but how much backup time you actually need.
Battery autonomy can vary significantly depending on:
- Connected load
- Battery capacity
- Number of battery units
- Battery voltage
- Battery technology
- Battery condition
- Operating temperature
- UPS efficiency
- Discharge characteristics
For example, a facility may require only a few minutes of backup to bridge the transition to generator power.
Another application may require sufficient runtime to perform a controlled shutdown.
Therefore, define the required backup time before selecting the battery configuration.
Do not assume that a higher-capacity UPS automatically means longer backup.
UPS capacity and battery autonomy are related but are not the same thing.
4. Choose the Right Battery Technology
Battery selection can significantly influence the size, cost, maintenance requirements, and operating characteristics of a UPS installation.
VRLA Batteries
Valve-Regulated Lead-Acid batteries are widely used in UPS applications.
They are sealed and generally require less routine maintenance than traditional flooded lead-acid batteries.
Lithium-Ion Batteries
Lithium-ion technology can offer higher energy density and potentially longer service life in appropriate applications.
However, it also involves different considerations related to battery management, installation, safety, thermal conditions, lifecycle, and initial cost.
The right battery technology depends on:
- Required autonomy
- Available space
- Operating temperature
- Maintenance requirements
- Expected lifecycle
- Installation environment
- Budget
- Application criticality
There is no universally correct battery technology for every UPS installation.
5. Check the Input and Output Configuration
A three-phase UPS must match the electrical infrastructure of the facility.
Before purchasing, verify:
- Input voltage
- Output voltage
- Input frequency
- Output frequency
- Input phase configuration
- Output phase configuration
- Neutral requirements
- Earthing requirements
- Bypass requirements
- Available electrical protection
Do not assume that every three-phase UPS uses the same input and output configuration.
The electrical characteristics should be checked against the site’s distribution system before installation.
6. Examine Power Factor
Power factor is an important consideration when comparing UPS systems.
It describes the relationship between real power and apparent power.
A higher power factor can allow a greater proportion of the UPS’s kVA capacity to be used for real power.
For example:
100 kVA × 0.9 PF = 90 kW
while:
100 kVA × 1.0 PF = 100 kW
This demonstrates why two UPS systems with the same kVA rating can have different usable power capacities.
Always compare the manufacturer’s stated kVA, kW, and power-factor specifications.
7. Evaluate UPS Efficiency
UPS efficiency affects both energy consumption and heat generation.
Even relatively small efficiency differences can become significant when a UPS operates continuously at substantial load levels.
When evaluating efficiency, look beyond the maximum advertised percentage.
Check efficiency at the load levels where your UPS will actually operate.
Important considerations include:
- Full-load efficiency
- Partial-load efficiency
- Energy losses
- Heat generation
- Cooling requirements
- Expected operating profile
For a continuously operating critical facility, efficiency can have a measurable effect on long-term operating costs.
8. Check Harmonic Performance
Modern facilities often contain large numbers of electronic loads.
These loads can contribute harmonic currents to the electrical system.
When selecting a three-phase UPS, review specifications such as:
- Input current THDi
- Output voltage THD
- Input power factor
- Electrical compatibility
- Generator compatibility
Harmonic performance becomes especially important in larger facilities with generators, transformers, multiple UPS systems, and significant electronic loads.
A UPS should therefore be evaluated as part of the complete electrical system rather than independently.
9. Examine Overload Capability
A UPS may occasionally experience temporary increases in electrical demand.
For example, equipment may start simultaneously or an unexpected load may be connected.
Before purchasing, check the manufacturer’s overload specifications, including:
- Maximum overload percentage
- Duration of overload support
- Operating conditions
- Protection response
- Bypass behavior
Never assume that two UPS systems with the same kVA rating have identical overload performance.
The manufacturer’s technical documentation should be used for the actual overload limits.
10. Check the Bypass Arrangement
A bypass arrangement can be important for both operational continuity and maintenance.
Depending on the UPS design, bypass functionality can provide an alternative electrical path for the connected load under specific operating conditions.
Before purchasing, determine whether the proposed system includes:
- Static bypass
- Maintenance bypass
- Manual bypass
- Appropriate bypass protection
- Suitable bypass capacity
The exact bypass architecture should be verified from the manufacturer’s specifications.
For critical installations, bypass planning should form part of the overall electrical design.
11. Verify Generator Compatibility
Many critical facilities use generators as long-duration backup power sources.
The UPS and generator therefore need to operate correctly together.
Important parameters include:
- Generator capacity
- UPS input power factor
- Input current distortion
- Frequency tolerance
- Voltage tolerance
- Load response
- Generator loading
- Transfer behavior
A typical arrangement may involve the UPS providing immediate continuity while the generator starts and takes over the longer-duration power requirement.
However, the generator should not simply be selected based on the UPS’s kVA rating.
The generator, UPS, battery system, and critical loads should be evaluated as an integrated power system.
12. Consider N+1 Redundancy
If the equipment being protected is highly critical, availability requirements may justify redundancy.
N+1 redundancy means the system has one additional capacity unit beyond the minimum capacity required to support the load.
For example, if three UPS modules are required to support a critical load, an N+1 arrangement would use four modules.
If one module becomes unavailable, the remaining system can potentially continue supporting the required load, subject to the specific system design.
Redundancy can be useful for:
- Data centers
- Financial infrastructure
- Industrial operations
- Healthcare environments
- Telecommunications
- Other high-availability facilities
However, redundancy increases system complexity and investment, so it should be justified by the application’s availability requirements.
13. Think About Future Expansion
Your electrical load today may not be the same two or five years from now.
A business may add:
- Servers
- Storage systems
- Network equipment
- Production machinery
- Automation systems
- Cooling equipment
- Communication infrastructure
If the UPS is already operating close to its maximum capacity, future expansion may require another UPS installation or an expensive system upgrade.
At the same time, excessive oversizing is not necessarily a good solution.
A better approach is to determine:
Current Load + Reasonable Growth + Appropriate Operating Headroom
The actual expansion margin should be based on the organization’s realistic growth plans.
14. Evaluate the Installation Environment
A UPS is an electrical system, not simply a piece of equipment that can be placed anywhere.
Before installation, evaluate:
- Ambient temperature
- Humidity
- Ventilation
- Dust
- Floor loading
- Available space
- Cable routing
- Electrical clearances
- Battery installation requirements
- Maintenance access
Temperature deserves particular attention because battery performance and service life can be affected by environmental conditions.
The installation area should therefore be suitable for both the UPS equipment and its battery system.
15. Check Monitoring and Communication
For critical infrastructure, operators need visibility into UPS status.
Depending on the model, monitoring capabilities can provide information about:
- Input voltage
- Output voltage
- Frequency
- Load percentage
- Battery condition
- Battery voltage
- Runtime
- Alarm status
- Fault conditions
Remote monitoring can be particularly useful when the UPS is installed in a data center, industrial facility, or other location where immediate physical access may not always be possible.
When comparing systems, check the available communication interfaces and monitoring capabilities rather than assuming every UPS provides the same functionality.
16. Compare Actual Product Specifications
Once you understand your requirements, compare actual UPS models instead of comparing generic product categories.
For example, Bansal Hi-Tech provides several three-phase UPS configurations.
The HPI 33 EVO 10–40 kW Three Phase UPS can be evaluated for applications falling within its specified capacity range.
For higher-capacity requirements, the KEOR HPE 60–500 kW Three Phase UPS represents a substantially different capacity class.
Other requirements may call for a different system architecture or capacity range, such as the KEOR T EVO 15–60 kVA Three Phase UPS.
The important point is to match the product to the actual application rather than selecting a model simply because its capacity appears attractive.
17. Compare Modular and Fixed-Capacity Options
The required UPS architecture can also depend on whether your organization expects significant changes in power demand.
For facilities where modularity and scalability are important, options such as the Easy UPS 3 Phase Modular 50–250 kW can be evaluated against the application’s requirements.
For applications requiring a different capacity range, the Easy UPS 3M Advanced 100–250 kW may also be considered.
The comparison should focus on the actual technical specifications, capacity requirements, expansion strategy, efficiency, redundancy, and installation conditions.
18. Consider the Required Power Capacity Carefully
Higher capacity does not automatically mean better suitability.
For example, a facility with a 30 kW critical load does not necessarily benefit from installing a UPS designed for several hundred kilowatts.
Oversizing can increase:
- Initial capital expenditure
- Installation requirements
- Infrastructure requirements
- Operating complexity
Conversely, undersizing can result in overloads and insufficient expansion capacity.
The right approach is to size the UPS according to the actual application.
For higher-capacity installations, products such as the Galaxy VS 20–150 kW, 480 V can be evaluated alongside the facility’s electrical requirements.
19. Think About Maintenance and Service
Purchasing a UPS is only the beginning of its operational lifecycle.
The system should be supported through appropriate preventive maintenance.
Maintenance can involve inspection of:
- UPS operating status
- Batteries
- Electrical connections
- Cooling and ventilation
- Alarms
- Protection systems
- Load conditions
- Environmental conditions
Battery condition is particularly important because batteries are consumable components with finite service lives.
When selecting a supplier, consider the availability of technical support and service in addition to the initial equipment price.
Bansal Hi-Tech provides client support as part of its service infrastructure.
20. Consider Rental Requirements for Temporary Applications
Not every UPS requirement is permanent.
Organizations may need temporary power protection during:
- Infrastructure upgrades
- Equipment replacement
- Facility expansion
- Events
- Planned maintenance
- Temporary project deployments
For such requirements, purchasing a permanent UPS may not always be the most practical option.
Bansal Hi-Tech also provides Online UPS Rental solutions for applications where temporary UPS capacity may be required.
21. Consider the Application Before Choosing the UPS
Different industries have different power-protection requirements.
For example, a manufacturing facility may prioritize production continuity and industrial-load compatibility.
A data center may place greater emphasis on availability, redundancy, monitoring, and scalability.
Bansal Hi-Tech’s Manufacturing industry solutions provide a relevant reference point for industrial applications.
For IT-intensive environments, the IT & ITES industry solutions are another relevant area to evaluate.
The UPS should ultimately be selected according to the electrical and operational characteristics of the application.
22. Review the Complete Power Infrastructure
A UPS does not operate in isolation.
The complete power system may include:
- Utility supply
- Distribution boards
- UPS
- Batteries
- Generator
- Transformers
- Protection devices
- Earthing system
- Critical loads
- Monitoring systems
For larger facilities, these elements should be considered together.
Bansal Hi-Tech’s Power Solution portfolio provides a broader view of the company’s power-related offerings.
Common Mistakes to Avoid Before Buying a 3 Phase Online UPS
Buying the Cheapest System
Initial purchase price is only one part of the total cost.
Energy consumption, battery replacement, maintenance, cooling, service, and downtime risk can all affect the long-term cost.
Selecting Only by kVA
Always compare kVA with kW, power factor, and actual load requirements.
Ignoring Battery Autonomy
A UPS without sufficient battery capacity may not provide the required backup duration.
Ignoring Future Growth
A UPS that barely supports today’s load may become inadequate as the facility expands.
Ignoring the Generator
If a generator is part of the facility’s backup strategy, UPS-generator compatibility should be evaluated before installation.
Ignoring Maintenance
Batteries and other UPS components require appropriate inspection and maintenance throughout their operating life.
Ignoring the Installation Environment
Temperature, ventilation, dust, humidity, space, and accessibility can affect UPS operation and battery life.
A Practical 3 Phase UPS Buying Checklist
Before placing an order, verify the following:
| Parameter | What to Check |
|---|---|
| Critical load | Actual kW requirement |
| UPS capacity | kVA and kW rating |
| Power factor | Load and UPS power factor |
| Phase | Input and output configuration |
| Voltage | Input and output voltage |
| Frequency | Required operating frequency |
| Battery | Technology and capacity |
| Runtime | Required backup duration |
| Efficiency | Performance at expected load |
| Harmonics | Input and output distortion |
| Overload | Supported overload duration |
| Bypass | Static and maintenance bypass |
| Generator | Compatibility and sizing |
| Redundancy | N, N+1 or other architecture |
| Expansion | Expected future load |
| Monitoring | Local and remote monitoring |
| Environment | Temperature, ventilation and space |
| Maintenance | Service and battery replacement |
| Support | Supplier support availability |
This checklist can help prevent the most common purchasing errors.
Final Thoughts
A 3 Phase Online UPS should be selected as part of a complete power-protection strategy rather than as a standalone electrical product.
Before buying, determine your actual critical load, calculate the required kVA and kW capacity, establish the required battery autonomy, evaluate power factor and efficiency, check harmonic performance, confirm the input and output configuration, review bypass and overload capabilities, assess generator compatibility, and determine whether redundancy or future expansion is required.
The physical installation environment and long-term maintenance requirements are equally important.
Most importantly, do not choose a UPS simply because it has a higher capacity or lower purchase price.
The right question is:
Does this UPS match my current electrical load, backup requirement, infrastructure, availability target, and future expansion plan?
If the answer is yes, you are much more likely to end up with a power-protection system that is technically appropriate and financially sensible.
Frequently Asked Questions
1. What should I check before buying a 3 Phase Online UPS?
Check the actual critical load, kVA and kW capacity, power factor, battery backup requirement, input and output configuration, efficiency, harmonic performance, overload capability, bypass arrangement, generator compatibility, redundancy, monitoring, installation environment, and future expansion.
2. Is a higher-kVA UPS always better?
No. A higher-capacity UPS can be unnecessary and expensive if the actual load is significantly lower. The UPS should be sized according to the present load, realistic future growth, and required operating headroom.
3. How do I calculate UPS capacity?
Determine the maximum critical load in kW, evaluate the load power factor, determine the corresponding kVA requirement, and then add an appropriate margin for future expansion and operating conditions.
4. How is battery backup time determined?
Battery autonomy depends on the connected load, battery capacity, battery configuration, battery condition, temperature, UPS efficiency, and discharge characteristics.
5. Why is UPS power factor important?
Power factor affects the amount of real power that can be delivered for a given kVA rating. Therefore, both kVA and kW ratings should be considered when comparing UPS systems.
6. Do I need a generator with a 3 Phase Online UPS?
Not necessarily. The requirement depends on the desired duration of backup and the facility’s power strategy. A generator can be useful when extended backup is required.
7. What is N+1 redundancy?
N+1 means providing one additional capacity unit beyond the minimum required to support the critical load. It can improve resilience and provide greater flexibility for maintenance.
8. Why should I check UPS efficiency?
Efficiency affects energy losses and heat generation. For continuously operating systems, efficiency can influence long-term electricity and cooling costs.
9. Does the installation environment matter?
Yes. Temperature, humidity, ventilation, dust, available space, and maintenance accessibility can affect UPS and battery performance.
10. Should I consider future expansion when buying a UPS?
Yes. If additional servers, machinery, networking equipment, or other electrical loads are expected, the UPS design should account for realistic future growth.
11. Is UPS rental an option for temporary requirements?
Yes. Organizations with temporary or project-specific requirements can consider Online UPS Rental instead of purchasing permanent equipment.
12. How often should a UPS be maintained?
Maintenance frequency depends on the UPS manufacturer, model, operating environment, battery technology, and application criticality. The manufacturer’s recommended maintenance schedule should be followed.
